VS Code Scopes & Settings Guide
This document provides a comprehensive reference for all the customizable scopes and settings available in Laeyrd. It is directly based on the extension's source configuration.

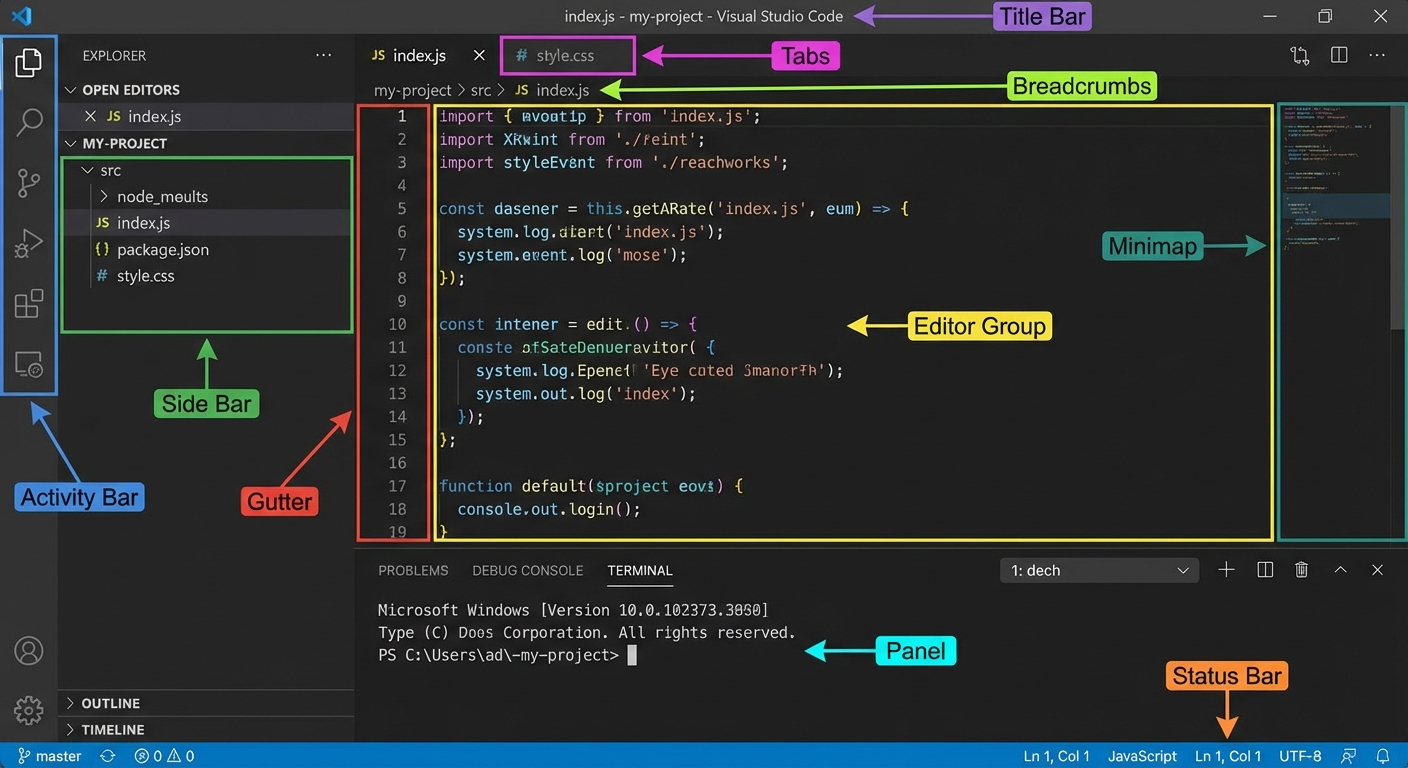

IDE Layout Overview
To effectively customize your environment, it's crucial to know the correct terminology for each part of the interface.
- Activity Bar: The narrow strip on the far left containing icons for Explorer, Search, Git, etc.
- Side Bar: The panel that appears next to the activity bar (e.g., the File Explorer tree).
- Editor Group: The main container for your open files.
- Gutter: The area to the left of the code containing line numbers and folding icons.
- Status Bar: The bottom strip showing branch name, cursor position, language, etc.
- Title Bar: The top window bar.
- Panel: The bottom area containing Terminal, Output, Debug Console.
- Minimap: The code overview on the right side of the editor.
Color Scopes
These settings control the colors of the UI elements.
Base
Core colors that affect the general appearance.
| Scope | Display Name | Description |
|---|---|---|
foreground | Foreground | Default UI text color |
disabledForeground | Disabled Text | Dimmed UI text color |
descriptionForeground | Description Text | Supplementary text color |
errorForeground | Error Text | Error messages text color |
icon.foreground | Icon Color | Default icon color |
focusBorder | Focus Border | Boundaries on focused elements |
contrastBorder | Contrast Border | High contrast element border |
contrastActiveBorder | Active Contrast Border | Active item high contrast |
widget.border | Widget Border | Border around widgets |
widget.shadow | Widget Shadow | Widget drop shadow |
selection.background | Global Selection | Workbench selection background |
scrollbar.shadow | Scrollbar Shadow | Shadow behind scrollbar |
scrollbarSlider.background | Scrollbar Thumb | Thumb background |
scrollbarSlider.hoverBackground | Scrollbar Hover | Thumb hover background |
scrollbarSlider.activeBackground | Scrollbar Active | Thumb active background |
sash.hoverBorder | Sash Hover Border | Resizer hover border |
Editor
Colors specific to the code editing area.
| Scope | Display Name | Description |
|---|---|---|
editor.background | Editor Background | Editor background color |
editor.foreground | Editor Text | Default editor text color |
editorGroup.border | Group Border Color | Editor group tab border color |
editorGroupHeader.tabsBackground | Group Tabs Background Color | Editor group tabs background color |
editorGroupHeader.noTabsBackground | Group Header Color | Editor group no tabs background color |
editorGroup.dropBackground | Group Drop Color | Editor group drop background color |
editorLineNumber.foreground | Line Numbers | Color of line numbers |
editorLineNumber.activeForeground | Active Line Number | Current line number color |
editorCursor.foreground | Cursor Color | Editor cursor color |
editor.selectionBackground | Selection Background | Text selection background |
editor.selectionHighlightBackground | Selection Highlight | Inactive selection highlight |
editor.findMatchBackground | Find Match | Current search match highlight |
editor.findMatchHighlightBackground | Find Highlights | Other search matches highlight |
editor.findRangeHighlightBackground | Find Range | Search limit background |
editorBracketMatch.background | Bracket Background | Bracket match background |
editorBracketMatch.border | Bracket Border | Bracket match border |
editorIndentGuide.background | Indent Guide | Inactive indent guides |
editorIndentGuide.activeBackground | Active Indent Guide | Active indent guide color |
editor.ruler.foreground | Ruler Line | Column ruler color |
editorOverviewRuler.border | Overview Border | Overview ruler border |
editorOverviewRuler.findMatchForeground | Overview Find Highlight | Find match in overview |
editorWidget.background | Widget Background | Inline widget background |
editorWidget.border | Widget Border | Inline widget border |
editorSuggestWidget.background | Suggest Widget BG | Completion popup background |
editorSuggestWidget.foreground | Suggest Widget Text | Completion popup text |
editorSuggestWidget.selectedBackground | Suggest Highlight | Selected completion background |
editorHoverWidget.background | Hover Tooltip BG | Hover tooltip background |
editorHoverWidget.border | Hover Tooltip Border | Tooltip border color |
editorGutter.background | Gutter Background | Gutter background color |
editorGutter.addedBackground | Gutter Added | Added line marker background |
editorGutter.deletedBackground | Gutter Deleted | Deleted line marker background |
editorGutter.modifiedBackground | Gutter Modified | Modified line marker background |
diffEditor.insertedTextBackground | Inserted Text BG | Inserted diff background |
diffEditor.removedTextBackground | Removed Text BG | Removed diff background |
diffEditor.border | Diff Editor Border | Border around diff editor |
Workbench
Colors for the shell of the IDE (Sidebar, Activity Bar, Panels, etc.).
| Scope | Display Name | Description |
|---|---|---|
tab.activeBackground | Active Tab BG | Background of active tab |
tab.activeForeground | Active Tab Text | Text of active tab |
tab.inactiveBackground | Inactive Tab BG | Background of inactive tabs |
tab.inactiveForeground | Inactive Tab Text | Text of inactive tabs |
tab.border | Tab Border | Border between tabs |
tab.hoverBackground | Tab Hover BG | Background on tab hover |
tab.hoverForeground | Tab Hover Text | Text on tab hover |
tab.activeModifiedBorder | Active Modified Border | Modification indicator on active tab |
tab.inactiveModifiedBorder | Inactive Modified Border | Modification indicator on inactive tab |
sideBar.background | Sidebar Background | Background of sidebar |
sideBar.foreground | Sidebar Text | Text of sidebar items |
sideBar.border | Sidebar Border | Border around sidebar |
sideBarSectionHeader.background | Sidebar Header BG | Section header background |
sideBarSectionHeader.foreground | Sidebar Header Text | Section header text |
sideBarTitle.foreground | Sidebar Title | Sidebar title text color |
activityBar.background | Activity Bar BG | Background of activity bar |
activityBar.foreground | Activity Text | Text in activity bar |
activityBar.border | Activity Bar Border | Border of activity bar |
activityBarBadge.background | Badge Background | Badge background color |
activityBarBadge.foreground | Badge Text | Badge text color |
panel.background | Panel Background | Background of panel |
panel.border | Panel Border | Panel border color |
panelTitle.activeForeground | Active Panel Title | Title text of active panel |
panelTitle.inactiveForeground | Inactive Panel Title | Title text of inactive panel |
statusBar.background | Status Bar BG | Background of status bar |
statusBar.foreground | Status Bar Text | Text color in status bar |
statusBar.border | Status Bar Border | Top border of status bar |
statusBar.debuggingBackground | Debugging BG | Status bar during debugging |
statusBar.debuggingForeground | Debugging Text | Text during debugging |
statusBar.debuggingBorder | Debugging Border | Border during debugging |
titleBar.activeBackground | Title Bar BG | Active window title bar background |
titleBar.activeForeground | Title Bar Text | Active window title bar text |
titleBar.inactiveBackground | Title Bar Inactive BG | Inactive window title bar background |
titleBar.inactiveForeground | Title Bar Inactive Text | Inactive window title bar text |
titleBar.border | Title Bar Border | Border of title bar |
Terminal
Colors for the integrated terminal.
| Scope | Display Name | Description |
|---|---|---|
terminal.background | Terminal Background | Terminal background color |
terminal.foreground | Terminal Text | Terminal text color |
terminalCursor.foreground | Terminal Cursor | Color of terminal cursor |
terminal.ansiBlack | ANSI Black | ANSI black color |
terminal.ansiRed | ANSI Red | ANSI red color |
terminal.ansiGreen | ANSI Green | ANSI green color |
terminal.ansiYellow | ANSI Yellow | ANSI yellow color |
terminal.ansiBlue | ANSI Blue | ANSI blue color |
terminal.ansiMagenta | ANSI Magenta | ANSI magenta color |
terminal.ansiCyan | ANSI Cyan | ANSI cyan color |
terminal.ansiWhite | ANSI White | ANSI white color |
terminal.ansiBrightBlack | Bright ANSI Black | Bright ANSI black |
terminal.ansiBrightRed | Bright ANSI Red | Bright ANSI red |
terminal.ansiBrightGreen | Bright ANSI Green | Bright ANSI green |
terminal.ansiBrightYellow | Bright ANSI Yellow | Bright ANSI yellow |
terminal.ansiBrightBlue | Bright ANSI Blue | Bright ANSI blue |
terminal.ansiBrightMagenta | Bright ANSI Magenta | Bright ANSI magenta |
terminal.ansiBrightCyan | Bright ANSI Cyan | Bright ANSI cyan |
terminal.ansiBrightWhite | Bright ANSI White | Bright ANSI white |
UI & Layout
Controls and input elements.
| Scope | Display Name | Description |
|---|---|---|
button.background | Button Background | Background of buttons |
button.foreground | Button Text | Text on buttons |
button.hoverBackground | Button Hover BG | Button background on hover |
dropdown.background | Dropdown Background | Dropdowns background |
dropdown.border | Dropdown Border | Border around dropdowns |
dropdown.foreground | Dropdown Text | Dropdown text color |
input.background | Input Background | Background of input fields |
input.border | Input Border | Border of input fields |
input.foreground | Input Text | Text in input fields |
input.placeholderForeground | Placeholder Text | Placeholder input text color |
inputOption.activeBorder | Option Active Border | Active option border |
inputValidation.errorBackground | Error BG | Input error background |
inputValidation.errorBorder | Error Border | Input error border |
badge.background | Badge Background | Badge background color |
badge.foreground | Badge Text | Text on badges |
Token Colors
These settings control the syntax highlighting of your code.
| Token | Display Name | Description |
|---|---|---|
comment | Comments | Color for code comments |
literal | Literals | Color for string literals |
keyword | Keywords | Color for keywords and control flow statements |
variable | Variables | Color for variable names |
constant | Constants | Color for constant variables |
parameter | Parameters | Color for function parameters |
function | Functions | Color for function and method names |
class | Classes | Color for class names |
interface | Interfaces | Color for interface names |
enum | Enums | Color for enumerations |
type | Types | Color for type annotations and type names |
number | Numbers | Color for numeric literals |
macro | Macros | Color for macros |
operator | Operators | Color for operators |
punctuation | Punctuation | Color for punctuation and delimiters |
property | Properties | Color for object or class properties |
annotation | Annotations | Color for decorators and annotations |
builtin | Builtins | Color for built-in functions or objects |
namespace | Namespace | Color for module or namespace names |
tag | Tags | Color for HTML/XML tags |
attribute | Attributes | Color for HTML/XML attributes |
escapesequence | EscapeSequences | Color for escape characters within strings |
invalid | Invalid | Color for invalid or erroneous code |
Font & Layout Settings
Customize the typography and layout of the editor.
Editor Font
| Setting | Display Name | Description | Default |
|---|---|---|---|
editor.fontFamily | Font Family | Controls the font family used in the editor. | "default" |
editor.fontSize | Font Size | Controls the font size in pixels. | 14 |
editor.fontLigatures | Font Ligatures | Enable/disable font ligatures. | false |
editor.fontWeight | Font Weight | Controls the font weight. | "normal" |
editor.fontVariations | Font Variations | Controls whether font-variation-settings are enabled. | true |
Editor Layout
| Setting | Display Name | Description | Default |
|---|---|---|---|
editor.lineHeight | Line Height | Controls the line height. Use 0 for automatic. | 0 |
editor.letterSpacing | Letter Spacing | Controls letter spacing in pixels. | 0 |
editor.lineNumbers | Line Numbers | Controls the display of line numbers. | "on" |
editor.wordWrap | Word Wrap | Controls how lines should wrap. | "off" |
editor.rulers | Rulers | Render vertical rulers after a certain number of characters. | "" |
editor.glyphMargin | Glyph Margin | Controls whether the glyph margin is shown. | true |
editor.stickyTabStops | Sticky Tab Stops | Emulate selection behavior of tab characters when using spaces. | false |
editor.padding.top | Editor Padding Top | Controls the top padding of the editor in pixels. | 0 |
editor.padding.bottom | Editor Padding Bottom | Controls the bottom padding of the editor in pixels. | 0 |
editor.scrollBeyondLastLine | Scroll Beyond Last Line | Controls whether the editor will scroll beyond the last line. | true |
editor.scrollBeyondLastColumn | Scroll Beyond Last Column | Controls the number of extra characters beyond the last column. | 5 |
editor.wordWrapColumn | Word Wrap Column | Controls the column at which to wrap lines. | 80 |
Cursor
| Setting | Display Name | Description | Default |
|---|---|---|---|
editor.cursorStyle | Cursor Style | Controls the style of the cursor. | "line" |
editor.cursorBlinking | Cursor Blinking | Controls the cursor animation style. | "blink" |
editor.cursorSmoothCaretAnimation | Smooth Caret Animation | Enables smooth cursor animation. | false |
editor.cursorWidth | Cursor Width | Controls the width of the cursor when style is line. | 0 |
editor.multiCursorModifier | Multi-Cursor Modifier | The modifier key for adding multiple cursors with the mouse. | "alt" |
Highlighting & Guides
| Setting | Display Name | Description | Default |
|---|---|---|---|
editor.renderLineHighlight | Render Line Highlight | Controls how the editor should highlight the current line. | "line" |
editor.renderLineHighlightOnlyWhenFocus | Render Line Highlight Only When Focused | Controls visibility of line highlight based on focus. | false |
editor.guides | Editor Guides | Controls the rendering of indentation and bracket guides. | "on" |
editor.selectionHighlight | Selection Highlight | Controls whether the editor should highlight matches similar to the selection. | true |
editor.occurrencesHighlight | Occurrences Highlight | Controls whether the editor should highlight semantic symbol occurrences. | true |
editor.semanticHighlighting.enabled | Semantic Highlighting | Controls whether semantic highlighting is enabled. | "configuredByTheme" |
editor.highlightActiveIndentGuide | Highlight Active Indent Guide | Controls whether to highlight the active indent guide. | true |
editor.guides.bracketPairs | Bracket Pair Guides | Controls whether bracket pair guides are enabled. | true |
editor.guides.indentation | Indentation Guides | Controls whether indentation guides are enabled. | true |
editor.guides.highlightActiveIndentation | Highlight Active Indentation | Controls whether the active indentation guide is highlighted. | true |
editor.renderIndentGuides | Render Indent Guides | Controls whether the editor should render indent guides (legacy). | true |
Minimap
| Setting | Display Name | Description | Default |
|---|---|---|---|
editor.minimap.enabled | Minimap Enabled | Controls whether the minimap is shown. | true |
editor.minimap.side | Minimap Side | Controls the side where to render the minimap. | "right" |
editor.minimap.size | Minimap Size | Controls the size of the minimap. | "proportional" |
editor.minimap.showSlider | Minimap Slider | Controls whether the minimap slider is shown. | "mouseover" |
editor.minimap.renderCharacters | Render Characters in Minimap | Render the actual characters on the minimap. | true |
editor.minimap.scale | Minimap Scale | Controls the scaling of the minimap. | 1 |
editor.overviewRulerLanes | Overview Ruler Lanes | Number of lanes for overview ruler. | 3 |
editor.overviewRulerBorder | Overview Ruler Border | Controls whether a border is drawn around the overview ruler. | true |
Scrollbar
| Setting | Display Name | Description | Default |
|---|---|---|---|
editor.scrollbar.vertical | Vertical Scrollbar | Controls the visibility of the vertical scrollbar. | "auto" |
editor.scrollbar.horizontal | Horizontal Scrollbar | Controls the visibility of the horizontal scrollbar. | "auto" |
editor.scrollbar.verticalScrollbarSize | Vertical Scrollbar Size | Controls the width of the vertical scrollbar in pixels. | 14 |
editor.scrollbar.horizontalScrollbarSize | Horizontal Scrollbar Size | Controls the height of the horizontal scrollbar in pixels. | 14 |
editor.scrollbar.scrollByPage | Scroll By Page | Controls whether clicking in the scrollbar scrolls by page. | false |
editor.smoothScrolling | Smooth Scrolling | Controls whether the editor animates scrolling. | false |
Workbench UI
| Setting | Display Name | Description | Default |
|---|---|---|---|
workbench.activityBar.visible | Show Activity Bar | Toggle activity bar visibility | true |
workbench.activityBar.iconSize | Activity Bar Icon Size | Size of activity bar icons | 16 |
workbench.statusBar.visible | Show Status Bar | Toggle status bar visibility | true |
workbench.statusBar.fontSize | Status Bar Font Size | Font size of status bar | 12 |
workbench.sideBar.location | Sidebar Location | Position of sidebar panel | "left" |
workbench.sideBar.visible | Show Sidebar | Toggle sidebar visibility | true |
workbench.editor.showTabs | Show Editor Tabs | Toggle editor tabs visibility | true |
workbench.editor.tabSizing | Editor Tab Sizing | Sizing mode for editor tabs | "fit" |
workbench.panel.visible | Show Panel | Toggle panel visibility | true |
workbench.panel.defaultLocation | Panel Location | Default panel position | "bottom" |
window.zoomLevel | Window Zoom Level | Adjust global window zoom level. | 0 |
window.titleBarStyle | Title Bar Style | Customize native or custom title bar style. | "native" |
breadcrumbs.enabled | Breadcrumbs | Show file path breadcrumbs above editor. | true |
explorer.compactFolders | Compact Folders | Compact multi-folder names in Explorer. | true |
workbench.editor.highlightModifiedTabs | Highlight Modified Tabs | Highlight tabs with unsaved changes. | true |
workbench.editor.labelFormat | Tab Label Format | Control how editor tabs' labels are shown. | "default" |
workbench.editor.wrapTabs | Wrap Tabs | Wrap editor tabs to multiple rows when space is limited. | false |
workbench.editor.openPositioning | Open Tab Positioning | Control where new tabs open. | "right" |
